[HB-GT2] 1/8 HYPER GT2 ON-ROAD NITRO ARR

STANDARD PARTS OPTIONAL PARTS  MANUAL EXPLODED VIEW

[FEATURES]

• CNC Aluminum 7075 and Hard Anodized Parts : -. All Turnbuckles/ All Balls/ Pivot Balls /Rear Hubs /Steering Racks
• Chassis: -. 3mm lightweight hard anodized aluminum -. +5 degrees of caster angle
• Rear Suspension Mount length +4mm, Rear Wheel Hubs length +2mm. Offset total +4mm each side, more stable at high speed.
• Front Suspension Mount has more holes for lower arms to change the roll centre setup.
• Drive: -. 4WD drivetrain -. Hardened steel center driveshaft -. Front and rear hardened steel universal driveshaft -. 17mm rear wheels hub (Length +2mm) -. Anti-loose wheel nut -. Hardened steel drive cup
• Differential: -. Bevel gear type -. Front differential filled with #500K silicone oil -. Rear differential filled with #50K silicone oil -. New anti-leakage differential housing -. Hardened steel lightweight cup

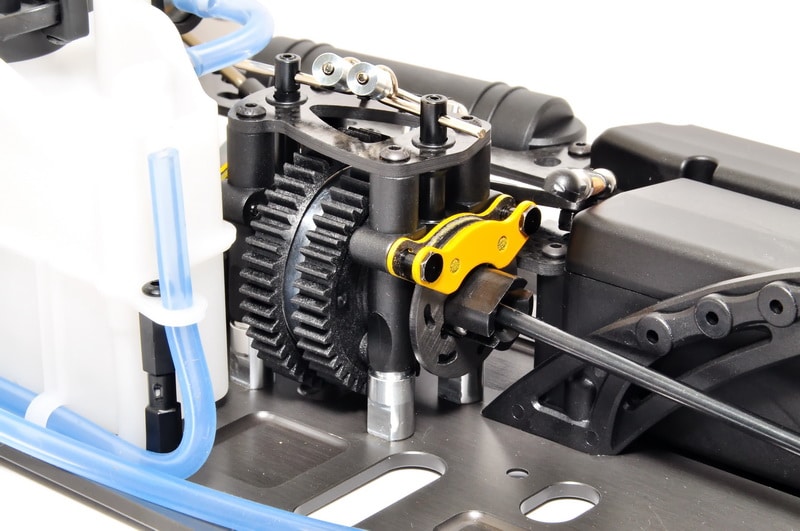

• 2 speed transmission : -. 44T and 48T spur gear (MOD 1, plastic gear) -. 15T/ 19T 2-Speed pinion gear (MOD 1, hardened steel gear)
• Clutch -. New CNC aluminum clutch shoes -. 1.1mm clutch springs
• Dual Brake and Linkage
• 35mm Lightweight Flywheel
• Adjustable Engine Mount
• Optimized Fuel Tank with Filter, Capacity: 150cc
• Carbon Fiber Servo Tray and Differential Top Plate
• CNC Aluminum Rear Hub
• New CNC Aluminum Front Top Plate
• Ball Bearing: Full set included

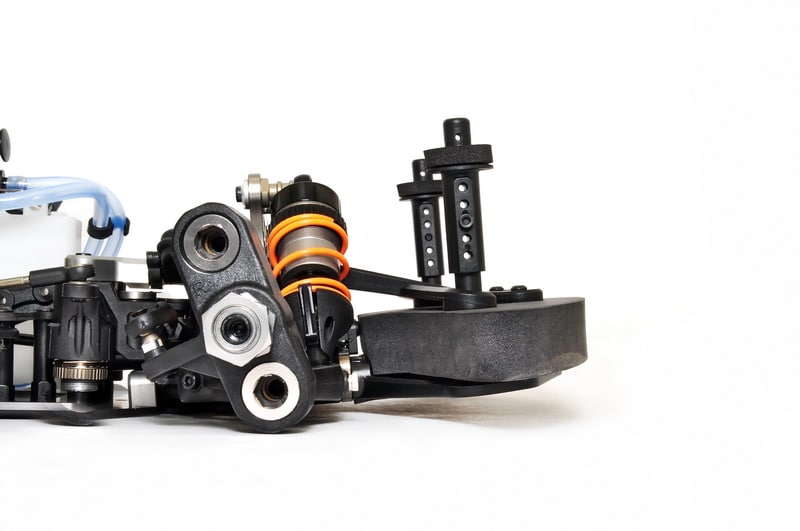

• Shock Absorber : -. Adjustable metal shock absorber -. Oil-filled 17mm big bore shock with #600 silicone oil and ring nut can be adjusted to change the hardness of spring -. 4mm diameter shaft

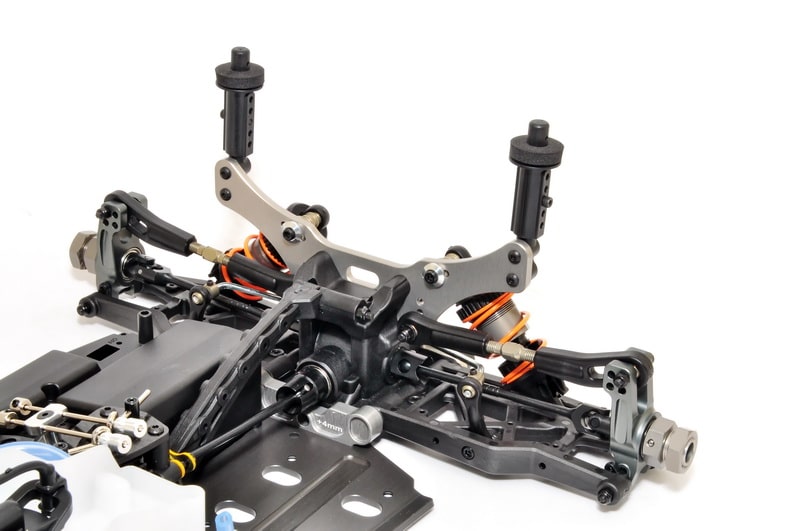

• Shock Tower: -. New 4mm thick CNC aluminum front and rear tower -. Tower plate with multiple holes for fixing the shock absorbers to change the setup
• Suspension: -. Front and rear adjustable sway bar -. Front PBS, reinforced composite upper arms and lower arms -. Front lower with droop screw -. Adjustable roll centre of front lower arms and front upper arms
• Extra Battery Box
• Caster: Adjustable
• Camber: Adjustable

[REQUIREMENTS]

• 3-Channel Radio/Transmitter Set
• Engine & Glow Plug
• Manifold & Muffler
• Tires,Wheels, and Glue for Tire
• Body and Paint for body
• High-torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter
• Nitro Fuel
• Glow starter building and track equipment
