[HB-VTE2-V2] 1/7 Extreme VT2-V2 On-Road Electric ARR

STANDARD PARTS
OPTIONAL PARTS
MANUAL
EXPLODED VIEW

[FEATURES]

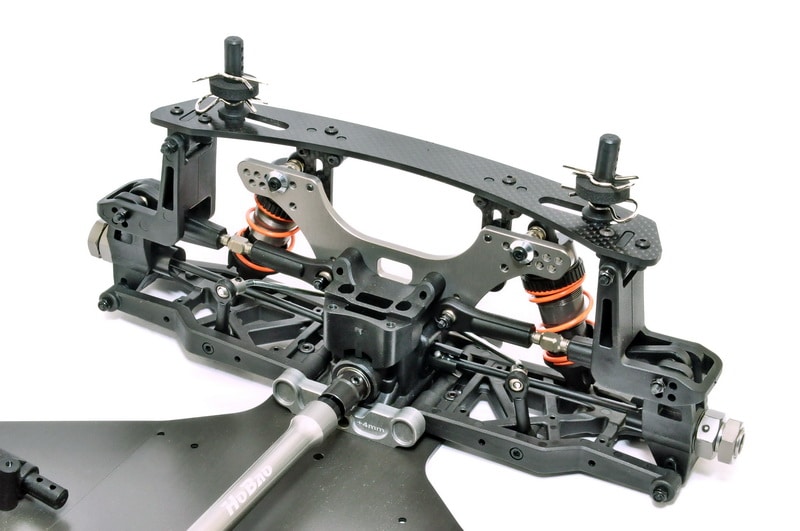

• New Lightweight Rear Floating Body Mount Set
  ※Fitting for VTE and VTE2 series

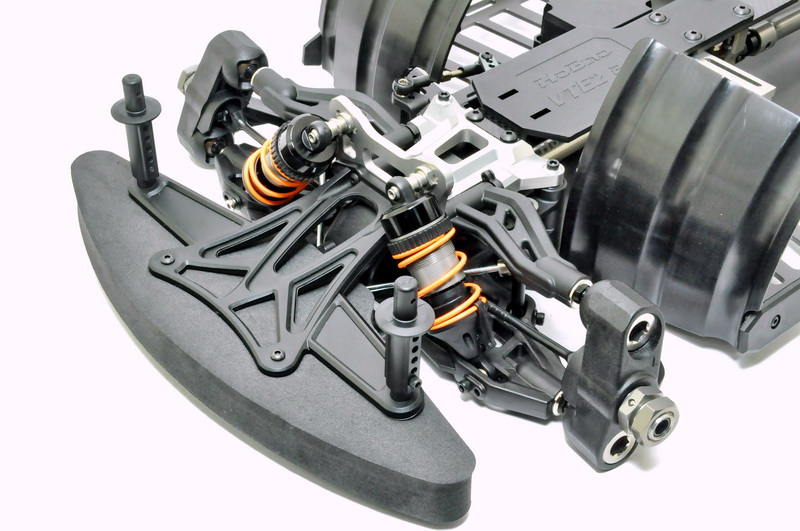

• New Front and Rear Splash Guards
• New Adjustable Side Body Supports
• 3-Position Adjustable Battery Stopper on Chassis for Different Sizes of Batteries
• New ESC Top Tray (The tray can be placed either on front or rear as per your preference)
• New Chassis: 3mm thick hard anodized aluminum
  ※Optional part #OP-0171 carbon fiber chassis
• New Rear Wheel Hub (Length +2mm) with Anti-Loose Wheel Nut
• New Rear Suspension Mount +4mm
• Drive: 4WD Drivetrain
  ※Hardened Steel Front Universal Joint Driveshaft and Rear Dogbone
  ※Optional 5.3mm Universal Driveshaft #OP-0159 & 5.0mm Rear Dogbone #OP-0161
  ※New Lightweight “Steel + Aluminum” Front & Rear Center Driveshaft
• Front & Rear Differential: Bevel Gear Type, New Anti-Leakage Differential Housing, Hardened Steel Lightweight Cup
  ※Front differential filled with #500K silicone oil
  ※Rear differential filled with #50K silicone oil
  ※Optional 40T Ring Gear #OP-0146 and 15T Pinion Gear #OP-0147
  ※Optional Bevel Gear #OP-0139
  ※Optional Differential Housing : OP-0148
• Center Spool: 34T Spur Gear (MOD 1), 8mm Shaft, Hardened Steel Cup
  ※fit for 8mm bore pinion gear
  ※Max. 48T Spur Gear can used
• Aluminum Spool Mount #OP-0153
• Motor Mount: CNC Aluminum, Cam Lock Style
  ※Standard Part #OP-0149 for max. O.D 50mm motor
  ※Optional Part #OP-0150 for max. O.D 57mm motor
• Shocks: Oil-filled 17mm Big Bore Shock with #600 silicone oil, 4mm Diameter Shaft
• Shock Tower: 4mm thick CNC Aluminum
  ※New Rear Shock Tower
• Ball Bearing: Full Set included
• Suspension: Front and Rear Sway Bars, Front PBS, Reinforced Composite Upper Arm and Lower Arm
• Caster: Adjustable
• Camber: Adjustable

[REQUIREMENTS]

• 2-Channel Radio/ Transmitter Set
• ESC & Motor
• Pinion Gear for Motor
• Tires,Wheels, and Tire Glue
• Body and RC Body Paint
• High-Torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter
